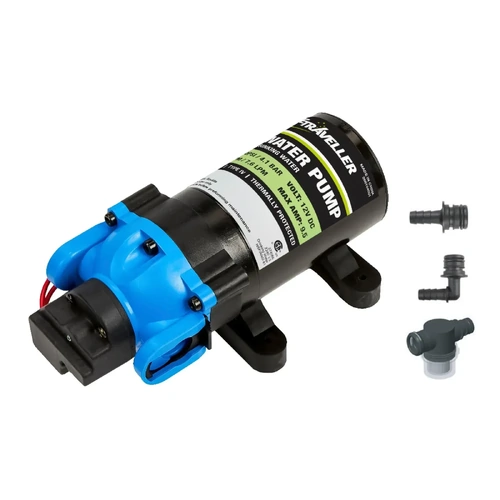

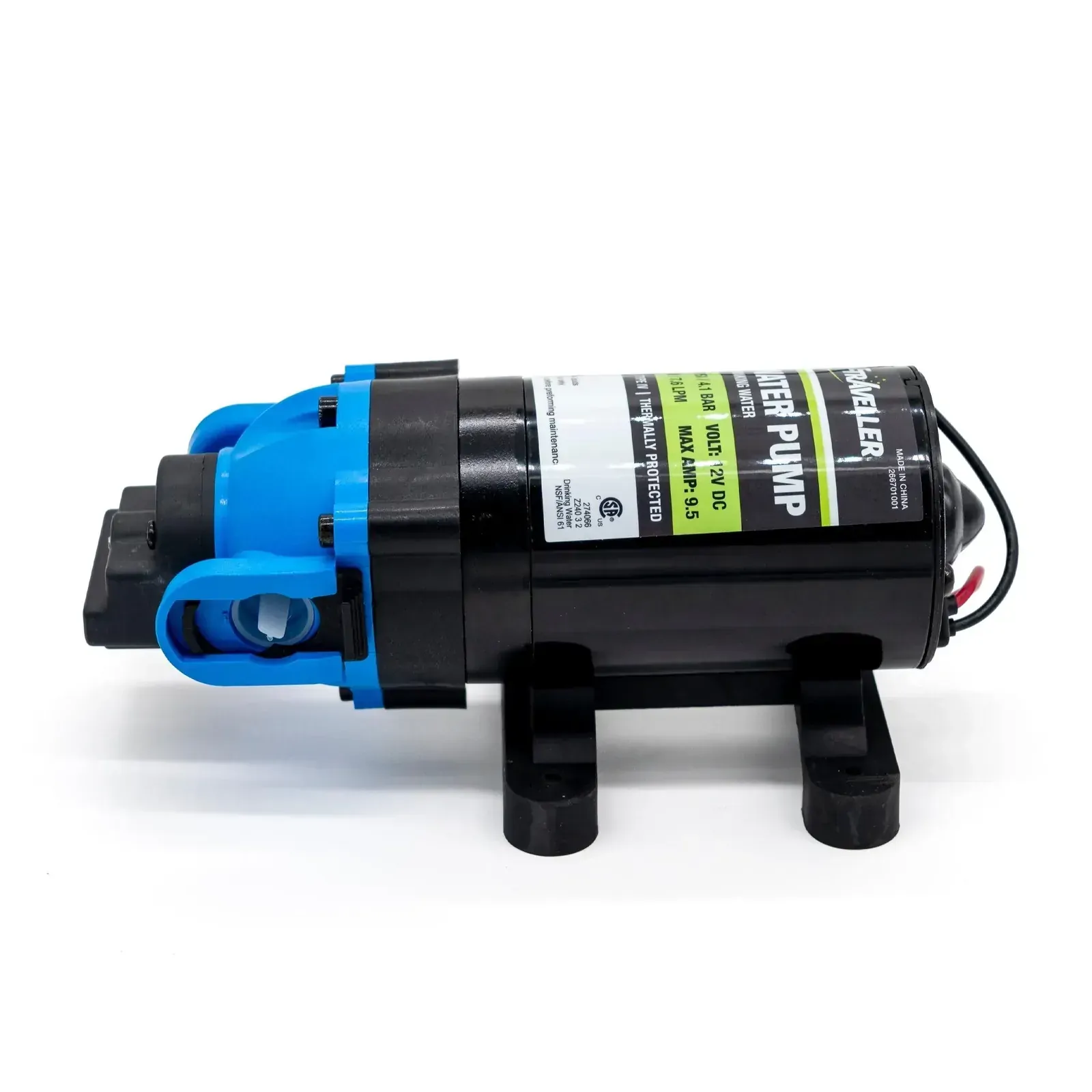

Aussie Traveller RV Water Pump 7.6ltr/pm

Aussie Traveller’s range of on demand 12V Water Pumps are high-quality and specifically designed for the transfer of fresh water for caravans, mobile homes, camper trailers, food vans, coffee carts and more.

The Santoprene™ diaphragm and patented DXS-3 valves provide faster priming to the Aussie Traveller RV Water Pumps. Don’t worry about the power bill since the freshwater diaphragm water pumps automatically shut-off when there is no flow to conserve battery power.

Self-priming up to 3m above liquid level, the thermically protected motor provides extended life and performance. The internal regulating valve maintains a steady flow at all pressures.

Features:
  • Steady flow rate
  • Automatic shut-off conserves battery
  • Quiet & efficient
  • Self-priming design
  • Specially designed for the RV & caravanning industry
  • Santoprene™ diaphragm
  • 2 year warranty



Specifications:

MODEL: 7.6LPM

PART NUMBER: 266701001

ELECTRICAL CONNECTION: 12V DC

AVERAGE OPERATING AMP DRAW: 5.5 Amps

MAXIMUM AMP DRAW: 9.5 Amps

MAXIMUM FLOW RATE: 7.6L/min (2.0GPM)

MAXIMUM PRESSURE: 4.1 Bar (60 psi)

INTERNAL BYPASS: No

PORTS: 3/4" QC

LIFT/HEAD: 2.4m (8ft)

LIQUID TEMPERATURE: 55°C

OVERALL DIMENSIONS: 225 × 102 × 93mm

WEIGHT: 2.27kg

WETTED MATERIALS: Plastics: Polyproyplene, Nylon |
Diaphragm: Santoprene | Valves/Seats: EPDM | Check Valve Spring: Stainless
Steel

CERTIFICATIONS: CE, NSF ANSI 61, CSA Z240.3.2 IPX1
Protection, IAPMO Class Type IV

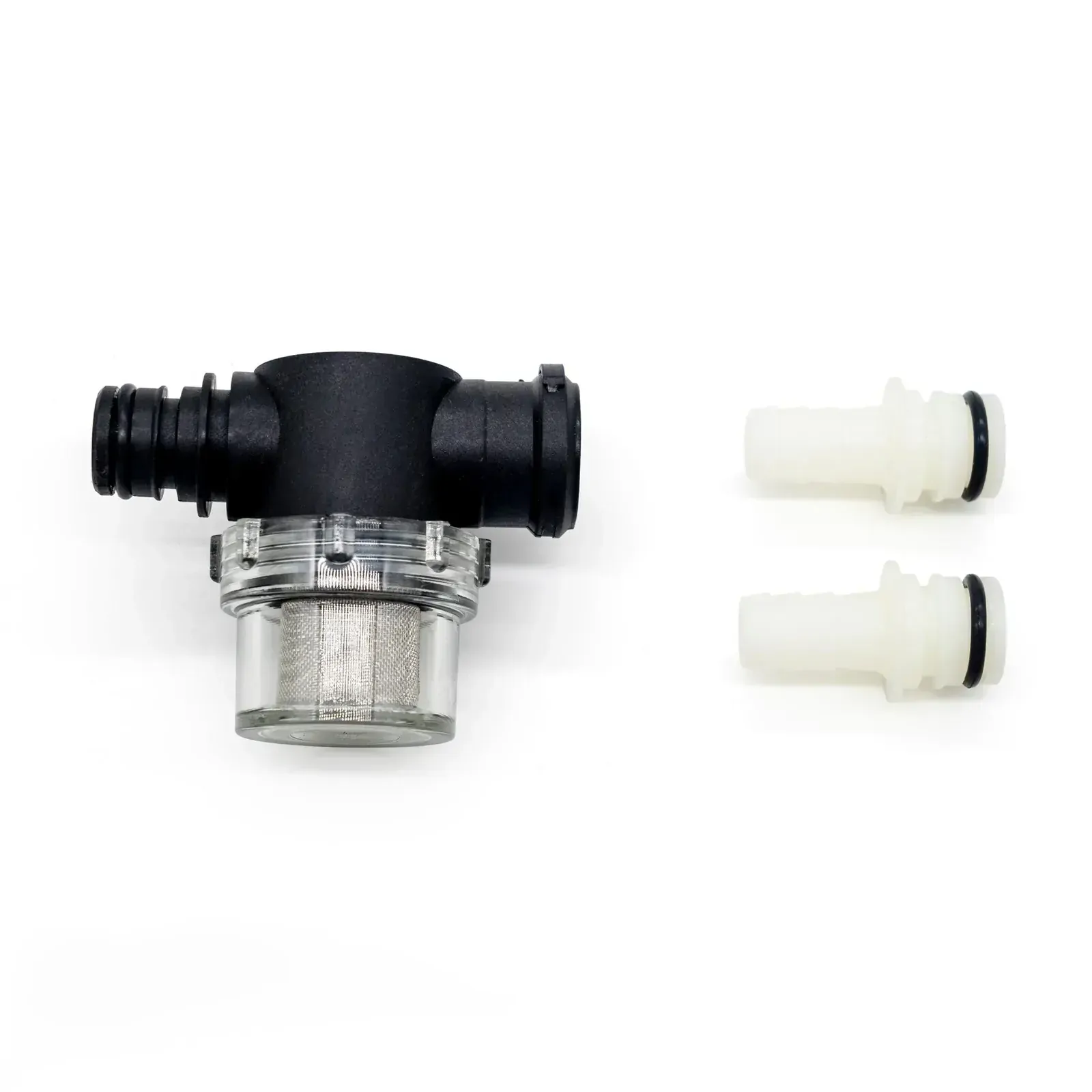

INCLUSIONS: 2 × 1/2in. (13mm) hose barb fittings, 1 × inlet strainer
