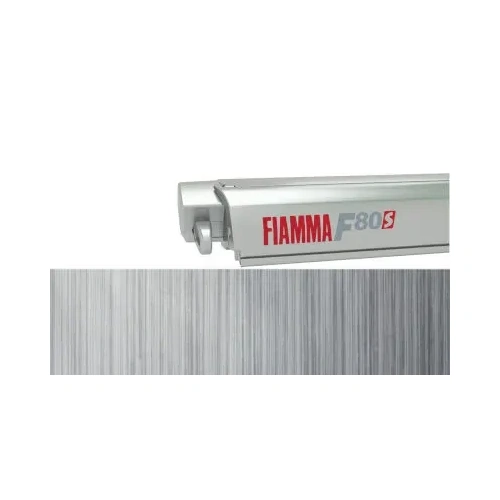

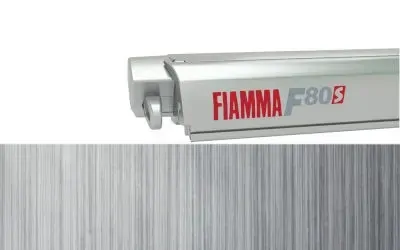

FIAMMA F80s 450 Titanium Awning - Royal Grey Canopy (Update). 07832G03R

Fiamma's F80 are the new, modern and compact awnings for roof installation.

An awning with an extremely small cross-section to integrate it even better in the contour of the vehicle.
The technical solutions which have been implemented mean a more compact awning protrusion. The introduced innovations, like dual prearrangement as standard equipment for LED lighting on the lead bar and on the case, in addition to three guides on the lead bar, make F80s the go-to solution for all roof-mounted installations.

Features:

• Dual LED Predefined position in lead bar + case: housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar
• Triple Guide: three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
•  Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
• Aluminium end caps: new design for the aluminium end caps for maximum strength
• Extra-Strong Arms: wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
  Rafter: central tension rafter in aluminium delivered as standard for awnings from 400cm long
• Installation brackets: the awning is provided without brackets,

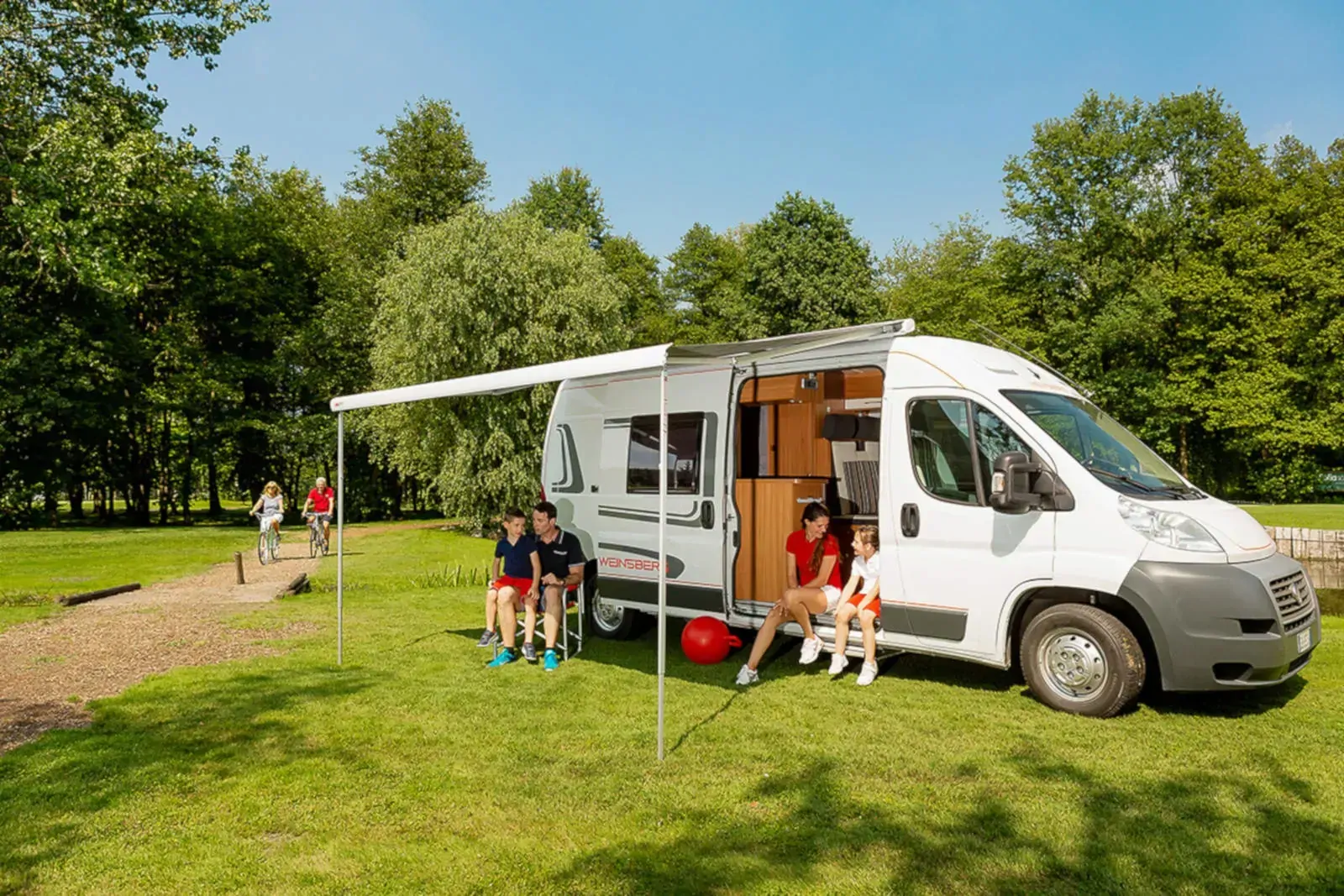

• Perfect for motorhomes, caravans and van conversions.
• Winch opening and closing. Operation by handle.
• Designed for roof installation.

Specifications:

• Available Sizes:

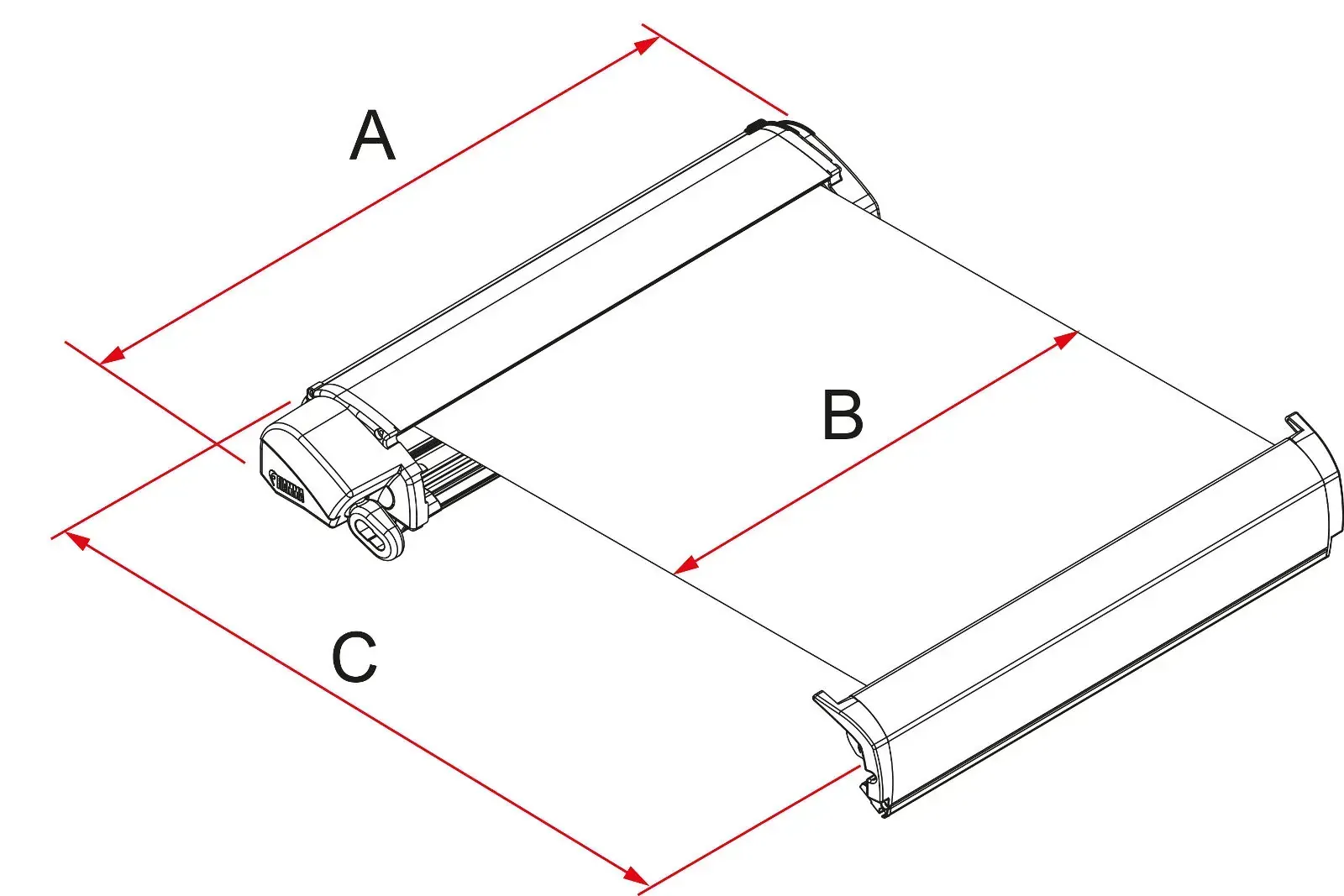

  Product Code	Description	Dimensions (Width x Length x Canopy Width)
  200-20756	FIAMMA F80s 290 DEEP BLACK AWNING - ROYAL GREY CANOPY	290cm x 278cm x 200cm
  200-20760	FIAMMA F80s 320 DEEP BLACK AWNING - ROYAL GREY CANOPY	320cm x 308cm x 250cm
  200-20764	FIAMMA F80S 340 DEEP BLACK AWNING - ROYAL GREY CANOPY	340cm x 328cm x 250cm
  200-20768	FIAMMA F80s 370 DEEP (3.7m) BLACK AWNING - ROYAL GREY CANOPY	370cm x 358cm x 250cm
  200-20772	FIAMMA F80s 400 DEEP BLACK AWNING - ROYAL GREY CANOPY	400cm x 358cm x 250cm
  200-20776	FIAMMA F80S 425 DEEP BLACK AWNING - ROYAL GREY CANOPY.	425cm x 412cm x 250cm
